UN2000 is used in this application. TEMP/TIME Based control is designed for BLOOD BANK CHAMBERS . Compressor is switched ON & OFF considering
SET TEMP & TIME. Compressor is on upto the set point, below the setpoint it gets.
Once the compressor gets off & if temperature increases above set point it can get ON only after the DELAY TIME.
The delay time is also programmable.
THE TIME & TEMPERATURE MONITORING AND CONTROL LEADS TO OPTIMUM USE OF COMPRESSORS ToO !

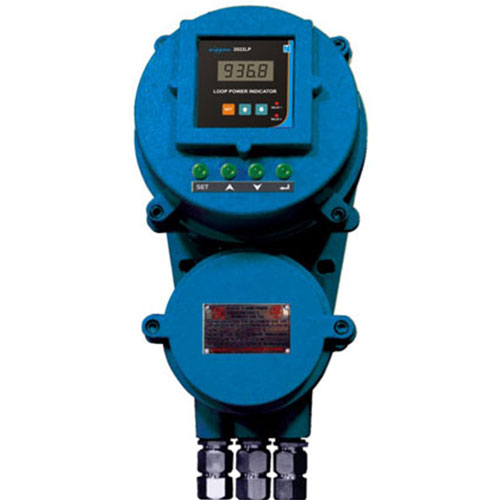

Nippon100L and Nippon2020L series is state of art Loop Power Indicators cum Controllers.
The series is designed with robust microcontroller. Nippon100L and Nippon2020L series is software linearised indicator offering excellent accuracy on 4½digit LCD. The range and decimal points are truly configurable.
Universal Process Indicator / controller is widely used for measuring level & in turn volume. Arithmetic capabilities of “microcontroller” is used. Level is measured with help of level transmitters, the Cross Sectional area of the storage TANK is to be programmed in the instrument. Instrument will calculate VOLUME of the liquid present inside the tank. The formula used is VOLUME = HEIGHT x A
The above instrument along with NIPPOLOG can provide excellent INVENTORY MANAGEMENT for LIQUID STORAGE Tank.
Level Control can be achieved using control functions of the instrument.
Setpoint and process both are displayed simultaneously. The process display is 12.5mm height.
The setpoint display is 8mm height. The power supply is 90-260 VAC.
1. ON-OFF Control: Relay is on upto the set temperature and cuts off at the set point. System temperature will come down and again relay will go on at temperature 2 °C below the set point. Same function is repeated. Adjustable dead band is provided for specific application. Time-Proportionating Control : Relay will be ON and OFF in band of ±2 °C of set-point. ON-OFF : time will adjust as per the heat requirement of the system. Of course total time cycle will be of 15 seconds.
2. 4½ digit Temperature Indicator/Controller Nippon 2020A.
3. Contact factory for supply volts of 90 – 260 VAC & retransmission output
